Machine Specifications :

  • Make Hartford
  • Model HB 2150 S

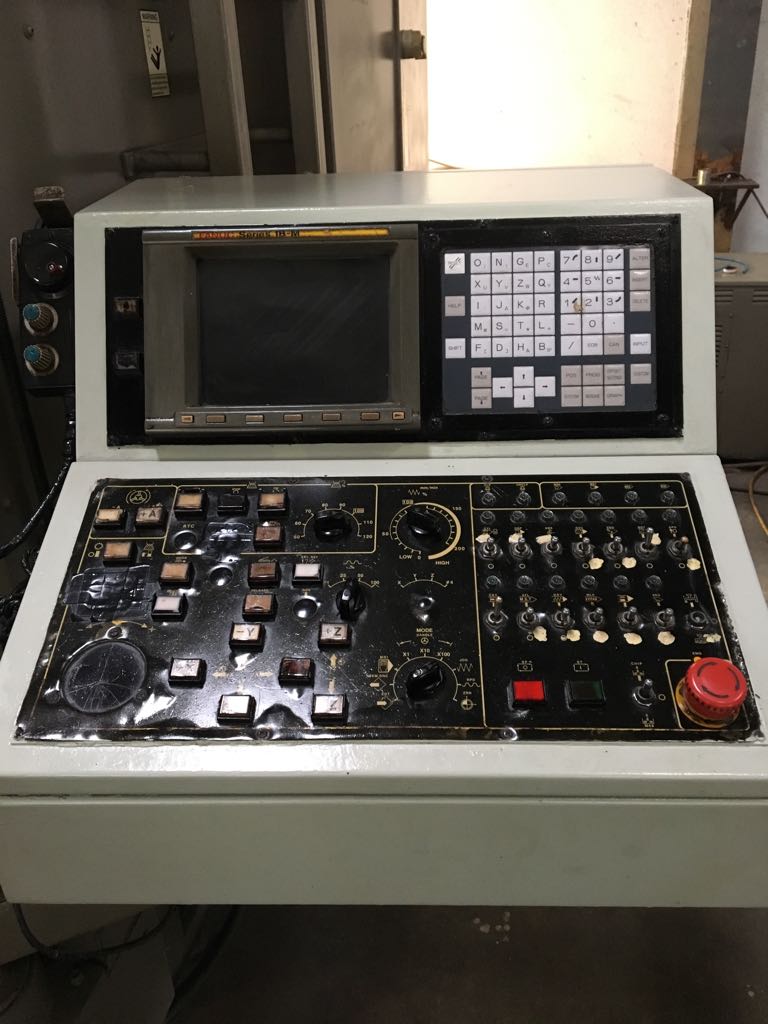

  • Fanuc 18MC

WORKING AREA

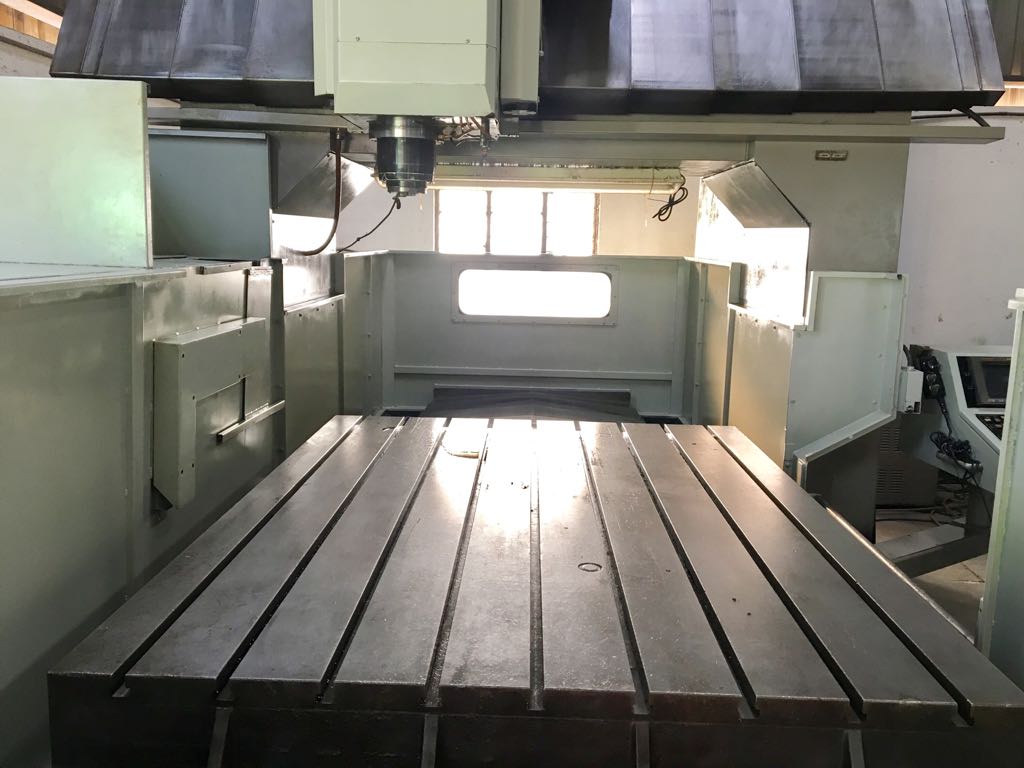

  • Working Surface Size (Length x Width) mm 2100×1450
  • Max. Workpiece Weight kg 5000
  • Height Between Table and Spindle mm 160+780=940
  • Guideway Type box
  • X-axis Travel mm 2060
  • Y-axis Travel mm 1560
  • Z-axis Travel mm 780mm
  • Between column 1700mm

SPINDLE

  • Spindle Speed (Gear) devir / 6000
  • Spindle Nose Taper – BT50
  • Spindle Motor Power kw/HP 18,5/25

FEED RATE

  • Cutting Feed Rate (X, Y, Z) mm / dk  7000/7000/7000
  • Rapid traverse (X, Y, Z) mm / dk 12000/12000/12000

AUTOMATIC TOOL CHANGER

  • Tool Number adet 32
  • Max. Tool Weight kg 15
  • Max. Tool Size (Diameter and Length) mm 125X300
  • Pull stud bolt P50T-1

OTHER

  • Required air pressure kg / cm2 6,5
  • Electric Power Consumption KVA 50
  • Machine Weight kg 23000
  • Machine Floor Space mm 7620X5640

Accessories

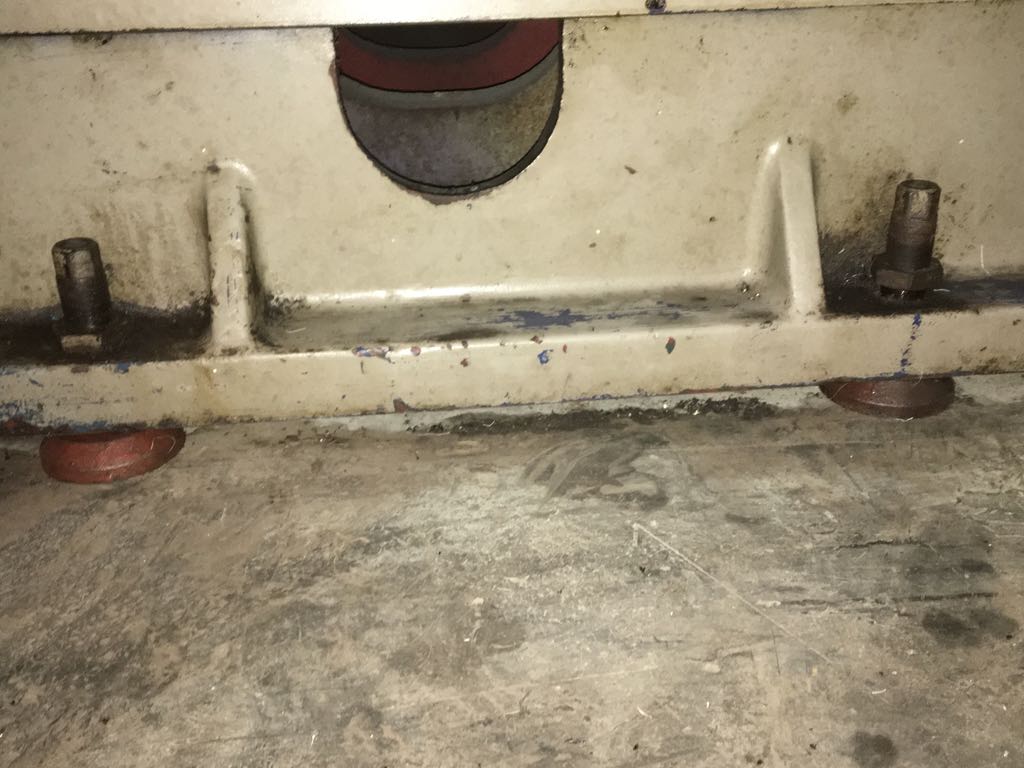

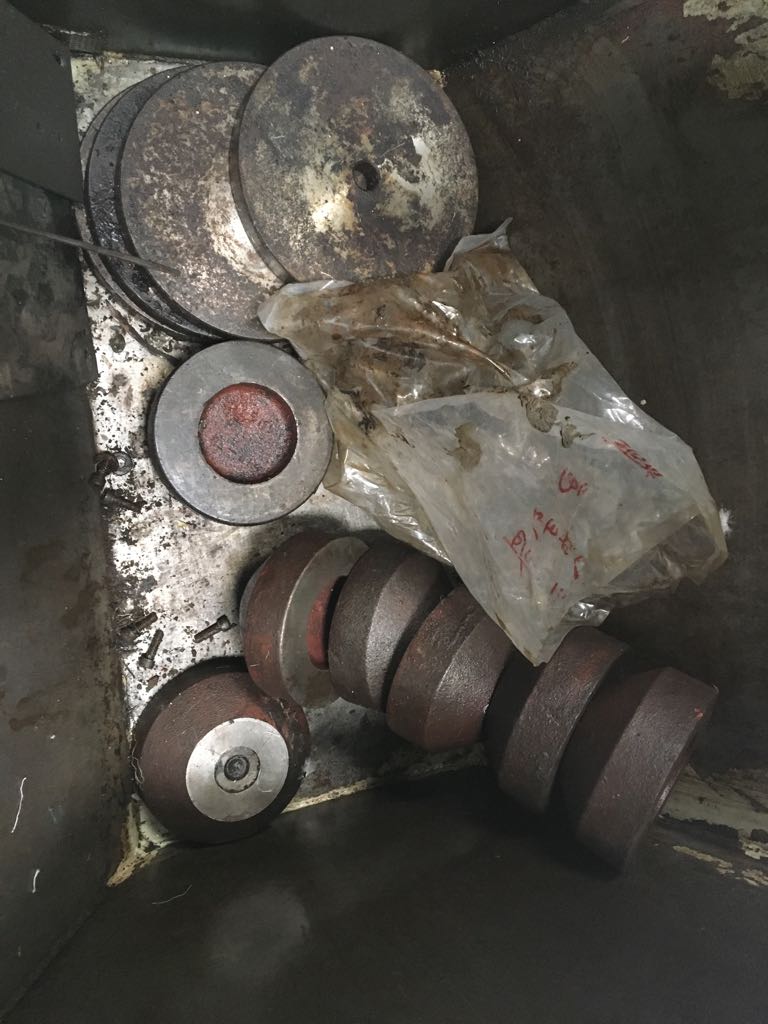

  • Chiep conveir,coolent tank,oilchiller,foundation pads & set of manuals.
  • Machine is in very good condition

Inspection Canbe possible underpower in our stock
